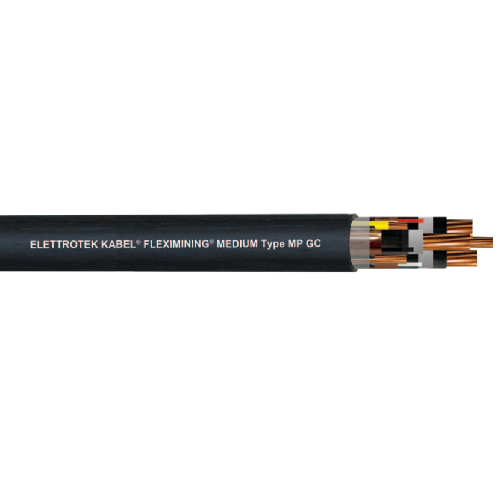

1 AWG 3C Stranded BC Unshielded XLPE PVC 5KV 100%/133% Flexible Mining Medium Type MP-GC Cable - Ideal for Underground Mining, Industrial Power Distribution, and Heavy-Duty Electrical Applications

Product Description

[pdf] [/pdf]

Allowable Ampacity for 1 AWG 3C Stranded BC Unshielded XLPE PVC 5KV 100%/133% Fleximining Medium Type MP GC Cable: 100 Amps

About:

The 1 AWG 3C Stranded BC Unshielded XLPE PVC 5KV 100%/133% Fleximining Medium Type MP-GC Cable is a robust and specialized electrical cable designed for medium-voltage applications.

Also Known As:

This cable is typically referred to as Type MP-GC, with "MP" indicating Medium Power and "GC" denoting Grounding Conductors. It's a medium-voltage cable designed for heavy-duty industrial use, particularly in the mining sector.

Application:

Mine power feeder cable, suitable in high-voltage distribution circuits for permanent or semi-portable installations in mining and industrial applications

Standards:

This type of cable commonly adheres to standards set by MSHA (Mine Safety and Health Administration) for mining applications. It also likely meets relevant ANSI (American National Standards Institute) and IEEE (Institute of Electrical and Electronics Engineers) standards, ensuring its suitability for high-voltage industrial environments.

Construction:

• Conductor: Concentric stranded bare copper acc. to ASTM B-3 or ASTM B-33, and ASTM B-8 or ASTM B-496
• Inner semi-conductive layer: Semi-conducting compound
• Insulation: XLPE compound
• Power screen: Bare copper tape
• Monitoring conductor: Bare copper
• Monitoring insulation: XLPE or PP compound
• Cores color: Power: color tapes in each power core (standard: black, white, red acc. to ICEA S-75-381), Monitoring: yellow
• Stranding: 3 power conductors laid up with 2 uninsulated ground-conductors and a monitoring conductor in interstices + fillers
• Wrapping: Binder tape
• Outer Sheath: Black (similar to RAL 9005), PVC compound, flame retardant

Features:

• Others colors on request
• acc. to standard ICEA S-75-381
• On request UL/CSA
• On request EPR/CPE version
• MSHA approval
• RoHS approval

Specifications:

• Power AWG no: 3x1
• Ground AWG no: 2x5
• Monitoring AWG no: 1x8
• Outer-Ø ca.mm ± 10%: 38,9
• Nominal voltage: 5 kV 100% or 133% insulation level up to 15 kV 100% insulation level
• Temperature range UL: Flexible installation: -40°C up to +90°C
• Min. bending radius: 15 x D
• Cable Weight approx Lbs/Mft: 1780
• Part Number: 06170275037A01
