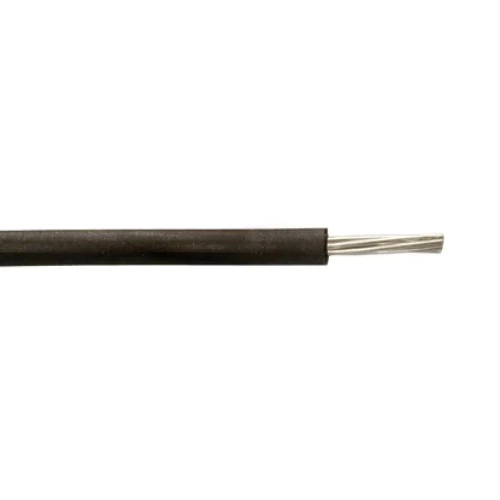

1 AWG 7x37/25 Tinned Copper Thermoset Insulated Hook Up Wire - High Temperature Resistant Electrical Cable for Automotive, Marine, and Industrial Wiring Applications

Product Description

[pdf] [/pdf]

1 AWG 7x37/25 Tinned Copper Thermoset Insulated Hook Up Lead Wire

Application:

Can be used for appliances, motor lead, coil lead, transformers, UPS, load banks, electric fork lift, or panel construction

Also Known As:

1 AWG Thermoset insulated wire, 1 AWG Tinned copper hook up, 1 AWG Lead wire specifications, 1 AWG Single conductor wire, 1 AWG High-temperature lead wire, 1 AWG Tinned copper applications, 1 AWG Electrical hook up wire, 1 AWG Industrial lead wire, 1 AWG UL certified hook up wire, 1 AWG Flexible tinned wire

Description:

Single Conductor Thermoset Insulated Multi-Rated 3340/3374 UL AWM 3340 OR 3374 125C (FLEX)/150C (NO-FLEX) 600V CSA CL1503 OR AWM I A/B 125C 600V FT2
Sizes
#20 AWG - #4/0 AWG.
Insulation
Thermoset

Specifications:

• Size: 1 AWG
• Stranding: 7x37/25 Tinned Copper
• Nominal O.D : 0.547
• Nominal Wall: 0.080
• UL style: AWM 3340 OR 3374
• CSA style: CL1503 OR AWM I A/B
• Approx. lbs/k ft: 345
