1 AWG 4-Conductor Stranded Aluminum Unshielded PVC Power Cable (N)AYY-J/O 0.6/1KV - Low Voltage Electrical Wiring for Industrial, Commercial, and Residential Applications

Product Description

[pdf] [/pdf]

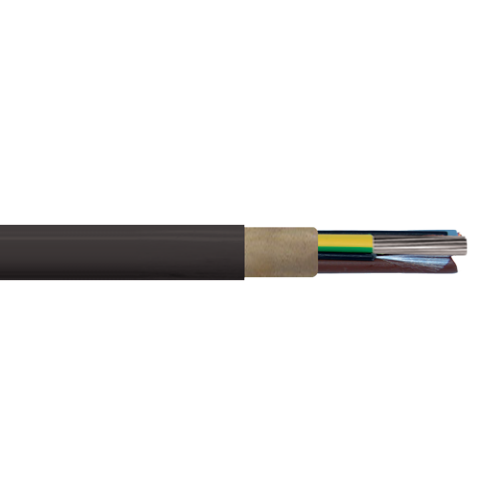

1 AWG 4C Stranded Aluminium Unshielded PVC O Type (N)AYY-J/O 0.6/1KV Power Low Voltage Cable

Allowable Ampacity for 1 AWG 4C Stranded Aluminium Unshielded PVC O Type (N)AYY-J/O 0.6/1KV Power Low Voltage Cable: 100 Amps

About:

This cable is constructed with aluminium conductors and is unshielded, with insulation and sheathing made from PVC (Polyvinyl Chloride). The "0.6/1kV" rating indicates that it is suitable for power systems with a voltage rating of up to 1 kilovolt. The use of aluminium makes it a cost-effective option for various installations, especially in situations where the lighter weight and lower cost of aluminium are advantageous compared to copper cables.

Also Known As:

• Aluminium PVC Insulated Power Cable
• Low Voltage Aluminium Cable
• NAYY Aluminium Power Cable

Application:

Power cables for energy supply are installed in open air, in underground, in water, indoors and in cable ducts, power station, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.

Standards:

• IEC 60502-1: Specifies the construction, dimensions, and test requirements for cables up to 1kV.
• VDE 0276: A German standard that covers power cables with extruded insulation and their accessories for rated voltages from 1kV to 30kV

Construction:

• Conductor: solid or stranded plain aluminium conductor Cl.1 or 2, acc. to IEC 60228 DIN VDE 0295
• Insulation: PVC, type DIV4
• Colour cores: acc. to DIN VDE 0293-308, HD 308 S2 from 6 cores black cores with consecutive numbers acc. to EN 50334; green-yellow earth-wire from 3 cores
• Stranding: cores stranded concentrically
• Outer sheath: black (RAL 9005), PVC type DMV5

Features:

• re: circular solid conductor
• rm: circular stranded conductor
• sm: sector-shaped stranded conductor
• se: sector-shaped solid conductor

Specifications:

• AWG no: 1
• No.of cores x cross section n x mm2: 4x50 sm
• Outer-Ø ca.mm ± 10%: 30
• Nominal voltage: Uo/U 0,6/1 kV
• Test voltage: 4 kV
• Alu weight kg/km: 580
• Temperature range: - 5 oC up to + 70 oC
• Min. bending radius: 12 x d
• Cable weight approx. kg/km: 1151
• Part Number: 46190G73040M65
