1 AWG 4 Core 400/26 Stranded BC POWER JZ CY Shielded TC Braid PVC Control Cable 1390104 - Heavy Duty Electrical Wiring for Industrial Machinery, Power Distribution & Automation Systems

Product Description

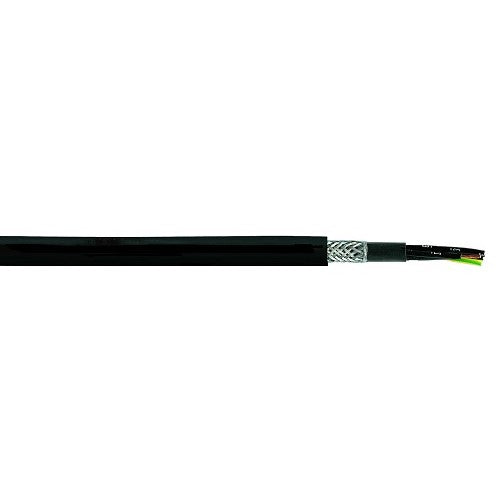

1 AWG 4 Cores 400/26 Stranded BC POWER-JZ-CY Shielded TC Braid PVC Control Cable 1390104

Allowable Ampacity for 1 AWG 4 Cores 400/26 Stranded BC POWER-JZ-CY Shielded TC Braid PVC Control Cable 1390104: 100 Amps

Also Known as:

Mueller Cable, POWER-JZ-CY Cable, Flexible Cable, Oil-Resistant Cable, Data Transmission Cable, Power And Control Cable, PVC Core Insulation Cable, Weather Resistant Cable, Overall Shielded Cable, 1390104 Cable

Description:

POWER-JZ-CY is a flexible 600/1000v, oil & weather resistant, overall shielded, PVC multi-conductor power and control cable designed for use in all electrical equipment in dry, damp or wet conditions.  For use in flexible and stationary applications under medium mechanical stress with free movement without any tensile stress, load or forced movements.  Common applications include machine tools, measuring and control systems, air condition installations, conveyor belts, production lines, plant and appliance construction and other electrical applications requiring a greater voltage.   Found in steel production plants, power stations, rolling mills, paint spray lines and refrigeration plants.  The tinned copper braid shield provides interference-free data and signal transmissions and greater protection against electromagnetic distortion. Outdoor installation is permitted due to the black UV-resistant PVC outer jacket.

Construction:

• Fine bare copper strands
• Strands to VDE-0295 Class-5, IEC 60228 Cl-5
• Special PVC core insulation
• Color code VDE-0293 - black & numbered
• Black PVC inner jacket
•  85% Tinned Copper Braid
•  Black PVC outer jacket (RAL 9005)
• “OZ” denotes no ground wire
• Extremely oil & chemical resistant

Technical:

• Working voltage: 600/1000 (600V UL)
• Test voltage: 4000 volts
• Flexing bending radius: 20 x Ø
• Static bending radius: 6 x Ø
• Flexing temp: -5º C to +70º C
• Static temp: -30º C to +80º C
• Flame retardant: IEC 60332.1,
• Insulation resistance: >20 MΩ x km

Approvals:

• VDE-0245, 0250, 0281, 0293, 0295
• CE Low Voltage Directive 73/23/EEC and 93/68/EEC
• ROHS compliant

Specification:

• Size AWG: 1
• Stranded: 400/26
• Number of Cores: 4
• Nominal OD: 1.559 Inch
• Weight CU: 1588 LBS/MFT
• Weight 1000ft: 3311 LBS/MFT
• Part Number: 1390104
