1 AWG XHHW-2 Aluminum Cable 600V - High Temperature Electrical Wire for Commercial & Industrial Wiring Projects

Product Description

[pdf] [/pdf]

[short]

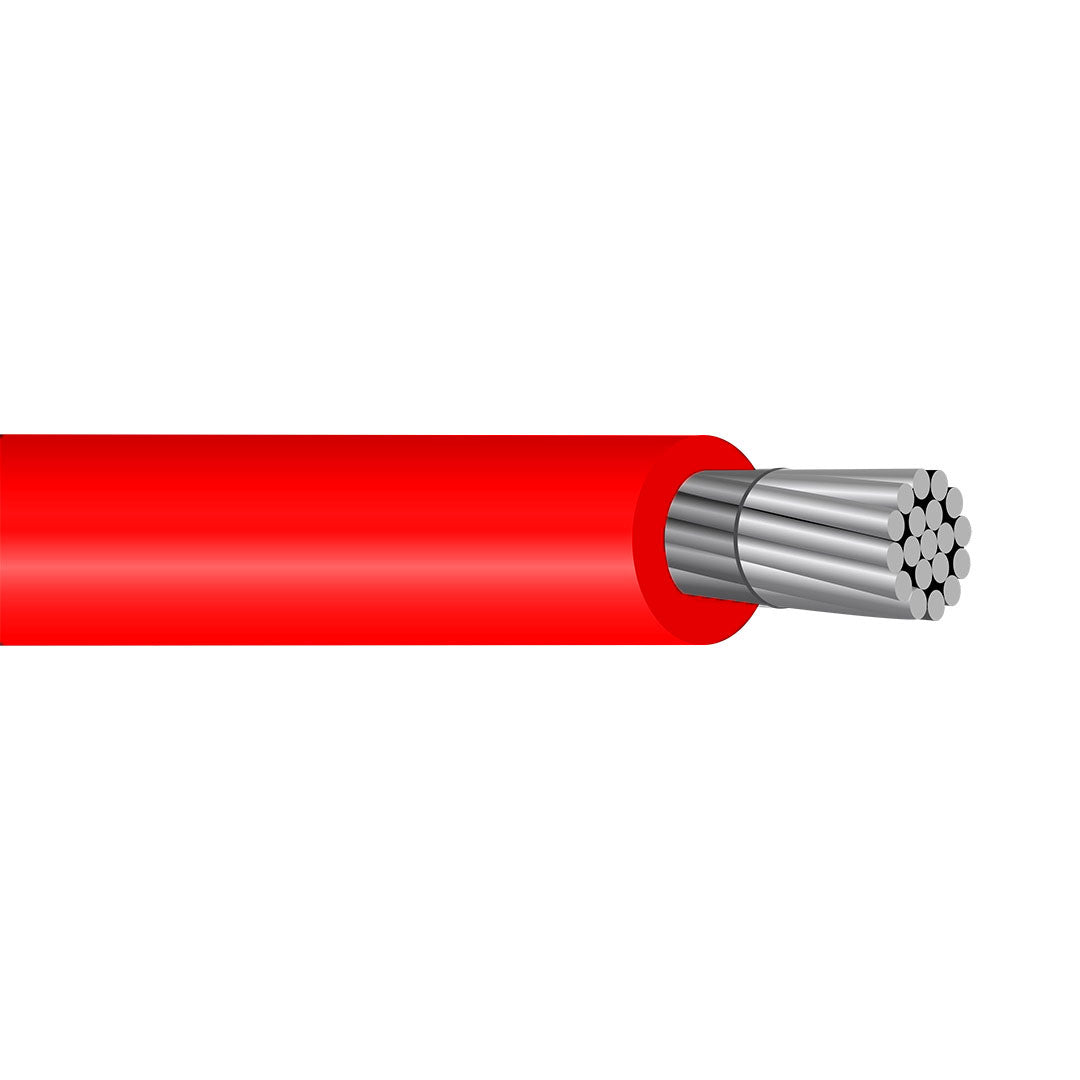

1 AWG XHHW-2 Aluminum Cable 600V

Allowable Ampacity for 1 AWG XHHW-2 Aluminum Cable 600V at 75°C: 100 Amps

Allowable Ampacity for 1 AWG XHHW-2 Aluminum Cable 600V at 90°C: 115 Amps

Applications:

These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.

1 AWG XHHW aluminum cable is used for:

• Service entrance
• Feeder circuits
• Sub-panel distribution
• Large appliances & equipment
• Conduit systems
• Motors and industrial equipment
• Renewable energy installations

Also Known As:

1 xhhw-2 cable, 1 hxxw-2 cable, 1 rw90 cable, 1 rw90 wire, 1 type se cable style u type xhhw-2, 1 xhhw-2, 1 southwire xhhw-2, 1 xhhw-2 insulation, #1 xhhw-2 aluminum wire, xhhw-2 2 general cable.

Standards:

• XHHW-2 meet or exceed the following standards:
• UL standard 44
• Requirements of the National Electrical Code
• ASTM standards B 800, B 801
• Federal Specification J–C-30B
• Sunlight resistant

Construction

Conductors:

XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.

Specifications:

• Size AWG: 1
• Stranding: 18
• Conductor Diameter Inches: 0.299
• Insulation Thickness Inches: 0.055
• O.D. Inches:  0.409
• New Weight lb/1000FT: 106 lbs
• Ampacity at 75°C: 100 Amps
• Ampacity at 90°C: 115 Amps

[/short]
