1 AWG Class K 600V Welding Cable - Heavy Duty Flexible Copper Wire for Automotive, Marine, and Industrial Applications

Product Description

[pdf] [/pdf]

[short]

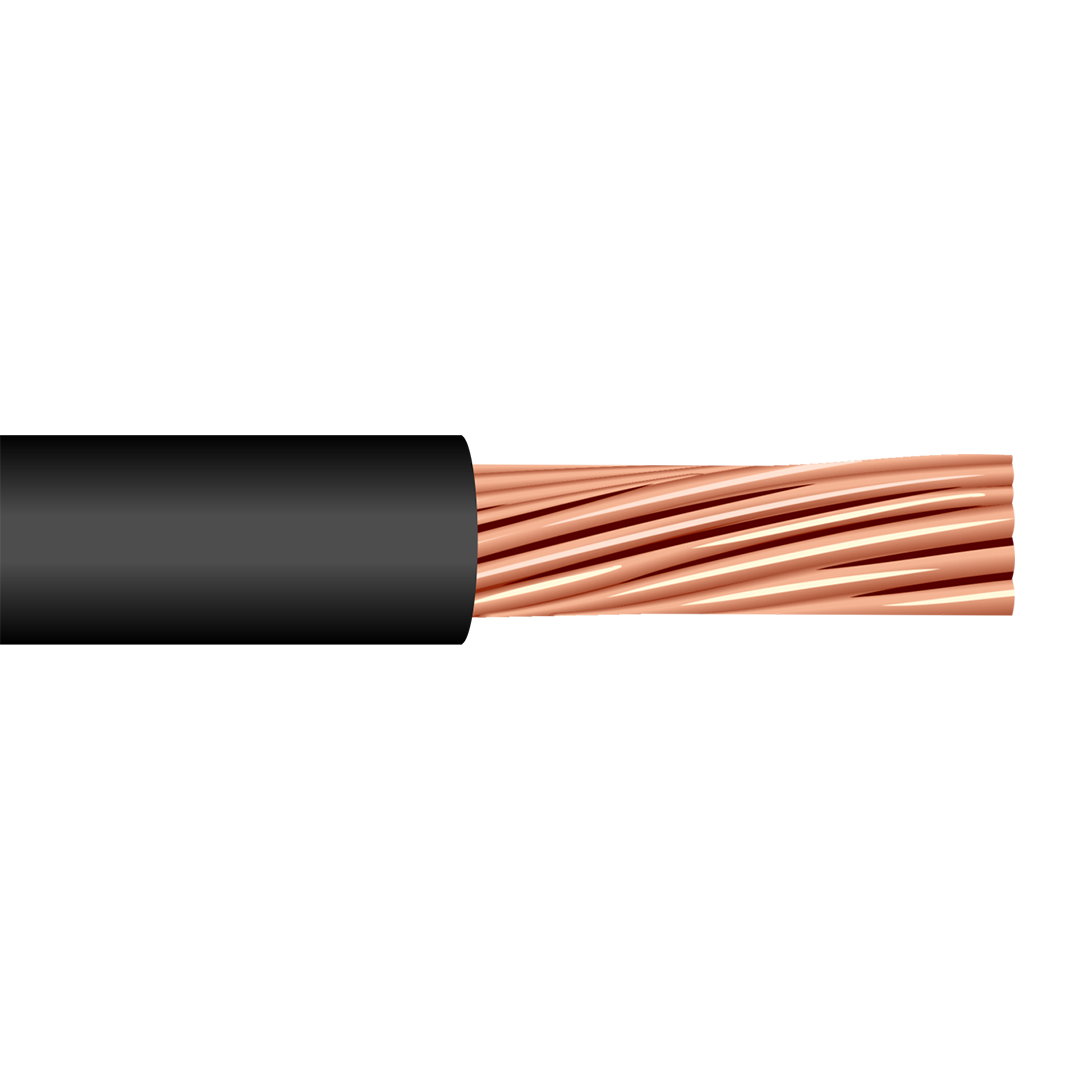

1 AWG Welding Cable Class K Black 600V Cable

Allowable Ampacity For 1 AWG Welding Cable Class K Black 600V Cable: 140 Amps

Applications:

1 AWG Welding Class K bare copper cable is used for welding leads and temporary power supply connections rated up to 600 volts AC and 90°C. Class K refers to the finely stranded (30 AWG) bare copper conductor, which makes the cable highly flexible and easy to work with.

This cable is commonly used in:

• Welding in medium-scale manufacturing
• Structural welding for constructing steel frameworks
• On-site repairs of agricultural, mining, and construction equipment
• Field service operations
• Mobile welding services
• Temporary power connections for high-demand tools and equipment

Also Known As:

1 Class K 90C 600V Bare Copper Temporary Power Cable, 1 Class K 90C 600V Bare Copper Flexible Power Cable, 1 Class K 90C 600V Bare Copper Welder's Cable,  1 Class K Welding Lead Wire, 1 Class K Welding Ground Lead, 1 Class K Copper Welding Lead.

Standards:

• RoHS Compliant
• Meets industry requirements for lead-free, environmentally safe construction

  Suitable for use in accordance with OSHA, NEC, and other regulatory safety codes when properly installed

Construction:

Conductor:

Fully annealed stranded bare copper, class K stranding.

Jacket:

Black premium-grade Ethylene Propylene Diene Monomer (EPDM) is flexible, durable, and resistant to moisture.

Specification:

• AWG Size: 1
• Conductors Strands: 1
• Conductor Type: 6 (778/30)BC
• Jacket type: EPDM
• Color: Black
• Insulation: NONE
• Voltage rating: 600V
• Temperature: 90C
• Outside Diameter: 0.495
• Lbs./M': 317

[/short]

Applications:

• Secondary voltage resistance welding leads
• Power supply applications not exceeding 600 volts AC

Features:

• Good flexibility
• Abrasion-resistant
• Good Color retention

Standards:

• RoHS compliant
