1 Channel SC Multi Mode Fiber Optic Receiver FSFP BFMM1SC2 - High-Speed Data Transmission for Network and Telecom Applications

Product Description

[pdf] [/pdf]

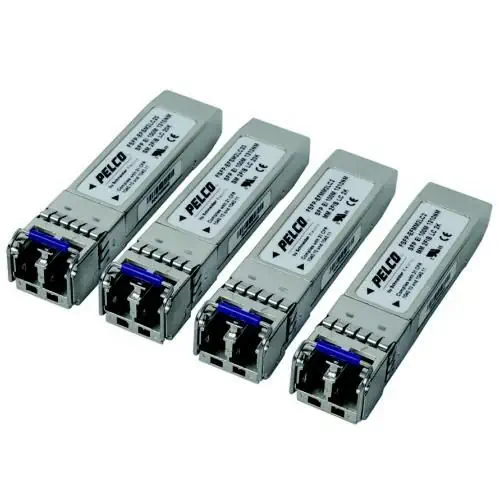

1 Channel SC Multi-Mode Fiber Receiver FSFP-BFMM1SC2

Also Known As:

1 Channel Fiber Receiver, Multi-Mode Fiber Receiver, SC Fiber Receiver

About:

Receiver, 100 Mbps Data Transfer Rate, 2 Km Max, 1 -Channel. The FSFP series transceivers are MSA-compliant, small form-factor pluggable (FSFP) modules that allow for an optical or copper interface when using a Pelco unmanaged switch or media converter. These interchangeable FSFP transceivers are available for use with unshielded twisted pair (UTP) cable, multi-mode optical fiber, or single-mode optical fiber. The optical FSFP series transceivers are available in Fast Ethernet one- and two-fiber versions, and Gigabit Ethernet one- and two-fiber versions. The transceivers are available with RJ-45, LC, or SC ports, and offer wavelengths and optical power budgets to meet distance requirements from 500m to 120 kilometers (984 ft. to 74.5 mi). The FSFP series transceivers are industrially-rated to perform in the most difficult operating environments. The Pelco FSFP interface is required for use with all Pelco FSFP configurable products to qualify for the manufacturer warranty. The FSFP series transceivers are ideal for transportation, airport, and college campus applications. The FSFP-BFMM1SC2 receiver is an MSA-compliant, small form-factor pluggable (FSFP) module designed to provide optical or copper interface options when used with a Pelco unmanaged switch or media converter. Engineered for demanding environments, it is industrially rated to operate under the most challenging conditions. The Pelco FSFP interface is essential for all Pelco FSFP-configurable products to maintain the manufacturer's warranty. This receiver is particularly well-suited for use in transportation, airport, and college campus applications.

Features:

• Compliant with IEEE 802.3 Standards
• No Performance Adjustments Required
• Multi-Source Agreement (MSA) Compliant
• Operating Temperature of –40° to 75°C (–40° to 167°F)
• Interchangeable Receivers to Match Media Type, Fiber Count, Fiber Path Length, and Connector Type

Specifications:

• Product Type: Multi-Mode Receiver
• Fiber Optic Transmission use: Ethernet Data
• Channels: 1 Channel
• Format:  Multi-Mode
• Part Number : FSFP-BFMM1SC2
