1 AWG Ultra Flexible Welding Cable - 600V Heavy Duty Rugged Jacket - Perfect for Industrial Welding, Automotive Repairs and Marine Applications

Product Description

[short]

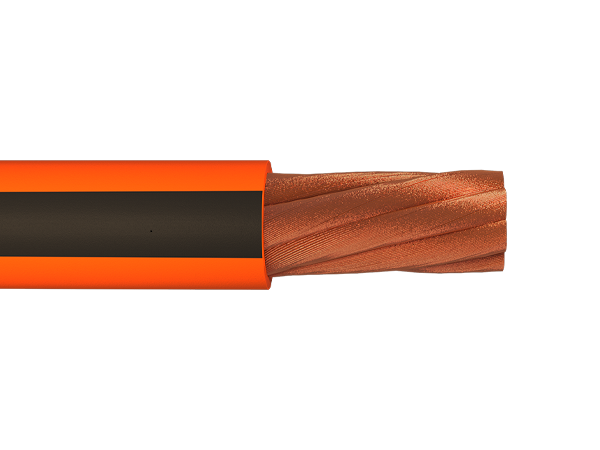

1 AWG Ultra Flex Welding Cable Rugged Jacket 600V

Applications:

Ultra-Flex Welding cable is designed to give you extra flexibility where stingers/whips, leads, and grounds are used. The electrical cable is used where high flexibility is required, including pipelines, robotics, and tight spaces. The cable has a distinguishing orange color with a black stripe. It is rated at 600 V. The temperature range of the electrical cable falls between -50 C and +105 C.

Also Known As:

1 Ultra Flex Temporary Power Cable, 1 Ultra Flex Flexible Power Cable, 1 Ultra Flex Welder's Cable, 1 Ultra Flex Welder's Cable, 1 Ultra Flex Welding Leads, 1 Ultra Flex Flexible Welding Cable

Construction:

• Rope-lay, bunch-stranded, ultra flexible 34 or 36 AWG
  SAE copper conductor
• Jacketed with TPE compound
• Signature vibrant orange with deep black striping


Conductors:

• Rope-lay, bunch-stranded, ultra flexible 34 or 36 AWG SAE copper conductor

Voltage Rating:

• 600 V


Insulation & Jacket:

• Jacketed with TPE compound
• Resistant to battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
• -50°C (-58°F) to 105°C (221°F)

Standards:

• NEC Article 630 (Electric Welders)
• SAE J1127 Compliant
• RoHS Compliant


Customization:

• Vibrant Orange with Black stripe
• {AWG} ULTRA-FLEX WELDING CABLE 600V -50°C +105°C * MADE IN USA * RoHS * SAE J1127


Specifications:

SIZE:  1 AWG
STRANDING (DIAM (OR) GA):  3,136 / 36 GA
INSULATION THICKNESS (NOM):  0.080 INCH
OUTSIDE DIAMETER (NOM):  0..498 INCH
WEIGHT (LBS/MFT):  311 LBS
