Product Description

 [pdf] [/pdf]

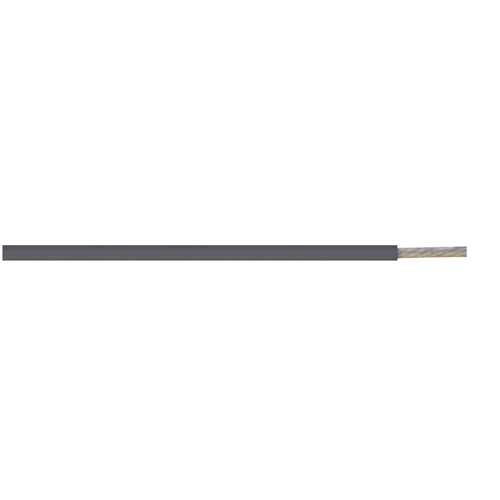

1 AWG Polyrad XT Flexible Rapid Transit Wire 600V

Application:

• Ideally suited for use where environmental factors require cable characteristics to perform with a high degree of flame retardancy and excellent moisturestable electrical values. Where reliability is the major concern and where maximum performance will be demanded
• Engineered and manufactured for both original equipment and retrofit use in power and control circuits and in motor leads
• Extensively found on all types of heavy- and light-rail cars, rapid transit cars, diesel-electric locomotives, freight cars, wayside equipment and off-road vehicles

Also Known As:

1 AWG POLYRAD XT 600V, 1 AWG Flexible Rapid Transit Wire, 1 AWG 600V transit cable, 1 AWG POLYRAD XT specs, 1 AWG Rapid transit wire POLYRAD, 1 AWG Flame-resistant transit cable, 1 AWG POLYRAD XT 600V applications, 1 AWG Transit wire electrical specs, 1 AWG POLYRAD XT flexible cable, 1 AWG POLYRAD XT safety ratings

Conductor:

20 AWG thru 1111 kcmil soft annealed tinned copper per ASTM B33, B8 and B172

Insulation:

Polyrad XT flame-retardant, low-smoke irradiated CrossLinked Polyolefin (XLPO)

Print:

GENERAL CABLE BRAND REX BRAND (WC) POLYRAD XT 125C/110C XXAWG 600V YEAR/MONTH

Options:

• Available in multi-conductor constructions
• Class K stranding
• Available in colors other than dark gray
• Cables meeting NYCT TX Specification available upon request

Features:

• Dual temperature rating at 125°C/110°C for long life, higher ampacities and protection from thermal overloads
• Excellent flexibility & free stripping
• Higher ampacities and simplified installations possible due to small outside diameters, flexible stranding and insulation
• Outstanding thermal stability at elevated temperatures
• Maximum flame retardance and low toxicity
• Excellent low-temperature performance; suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated thermoset insulation
• Resistant to most oils and chemicals
• Meets cold bend test at –55°C
• Meets cold impact test at –40°C

Specifications:

• Size: 1 AWG
• No of Stranding: 225/24
• Nominal Conductor Diameter (In): 0.380
• Nominal Insulation Thickness (Mils): 55
• Nominal Cable Diameter (In) : 0.490
• Ampacity Free Air 40° Ambient: 110°C = 247, 125°C = 267
• Copper Weight (Lbs): 287
• Cable Weight (Lbs): 346
