1 AWG 4 Core 400/26 Stranded FLEX UL P CSA/CE BC PUR Jacket Power and Control Cable 1700104 - Heavy Duty Electrical Wiring for Industrial Equipment, Machinery, and Outdoor Applications

Product Description

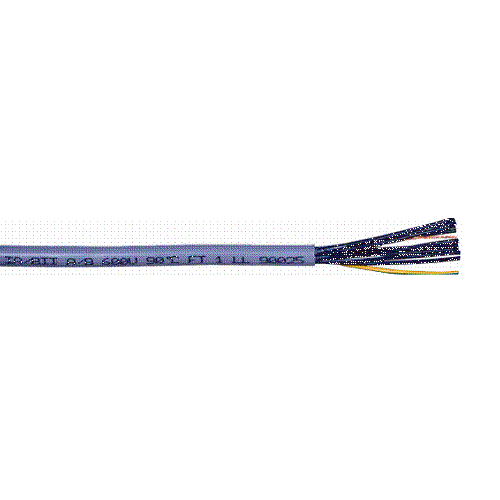

1 AWG 4 Cores 400/26 Stranded FLEX-UL-P CSA/CE BC PUR Jacket Power And Control Cable 1700104

Allowable Ampacity for 1 AWG 4 Cores 400/26 Stranded FLEX-UL-P CSA/CE BC PUR Jacket Power And Control Cable 1700104: 100 Amps

Also Known as:

Mueller Cable, FLEX-UL-P Cable, Flexible Cable, Oil-Resistant Cable, Data Transmission Cable, Power And Control Cable, PUR Jacket Cable, PVC Core Insulation Cable, 1700104 Cable

Description:

FLEX-UL-P is polyurethane, flexible, oil-resistant, multi-conductor power and control cable designed for use in all electrical equipment in dry, damp and wet conditions. Especially designed for the North American market by carrying UL and CSA approvals. For use in flexible or stationary applications under high mechanical stress with free movement without any tensile stress, loads or forced movements. Common applications include connections and control to CNC machines, machine tools, control systems, assembly lines, control panel to machine connections, grinding machines and bottling equipment. Found in plant engineering, paint shops, power stations and refrigeration plants. The rugged polyurethane outer jacket ensures excellent chemical, coolant, abrasion and tear resistance making FLEX-UL-P suitable for applications in contact with mineral oils and chemicals.  Outdoor installation is not permitted.

Construction:

• Fine bare copper strands
• Strands to VDE-0295 Class-5, IEC 60228 Cl-5
• Special PVC core insulation
• Color code VDE-0293 - black & numbered
• Ground wire in outer layer
• PUR outer jacket - gray (RAL 7001)
• “OZ” denotes no ground wire
• Extremely oil & chemical resistant

Technical:

• Working voltage: 300/500 (600V UL)
• Test voltage: 3000 volts
• Flexing bending radius: 12.5 x Ø
• Static bending radius: 5 x Ø
• Flexing temp: -5º C to +80º C
• Static temp: -30º C to +80º C
• Flame retardant: IEC 60332.1, FT1
• Insulation resistance: 20 MΩ x km

Approvals:

• UL Style 10012 / 20234
• CSA AWM II A/B FT1
• VDE 0250 & 0282
• CE Low Voltage Directive 73/23/EEC and 93/68/EEC
• ROHS compliant

Specification:

• Size AWG: 1
• Stranded: 400/26
• Number of Cores: 4
• Nominal OD: 1.409 Inch
• Weight CU: 1288 LBS/MFT
• Weight 1000ft: 2051 LBS/MFT
• Part Number: 1700104
