1 AWG High-Quality Stage Lighting Cable for DJ Equipment, Concerts & Events - Durable Entertainment Power Cable for Professional Audio & Lighting Systems

Product Description

[pdf] [/pdf]

[short]

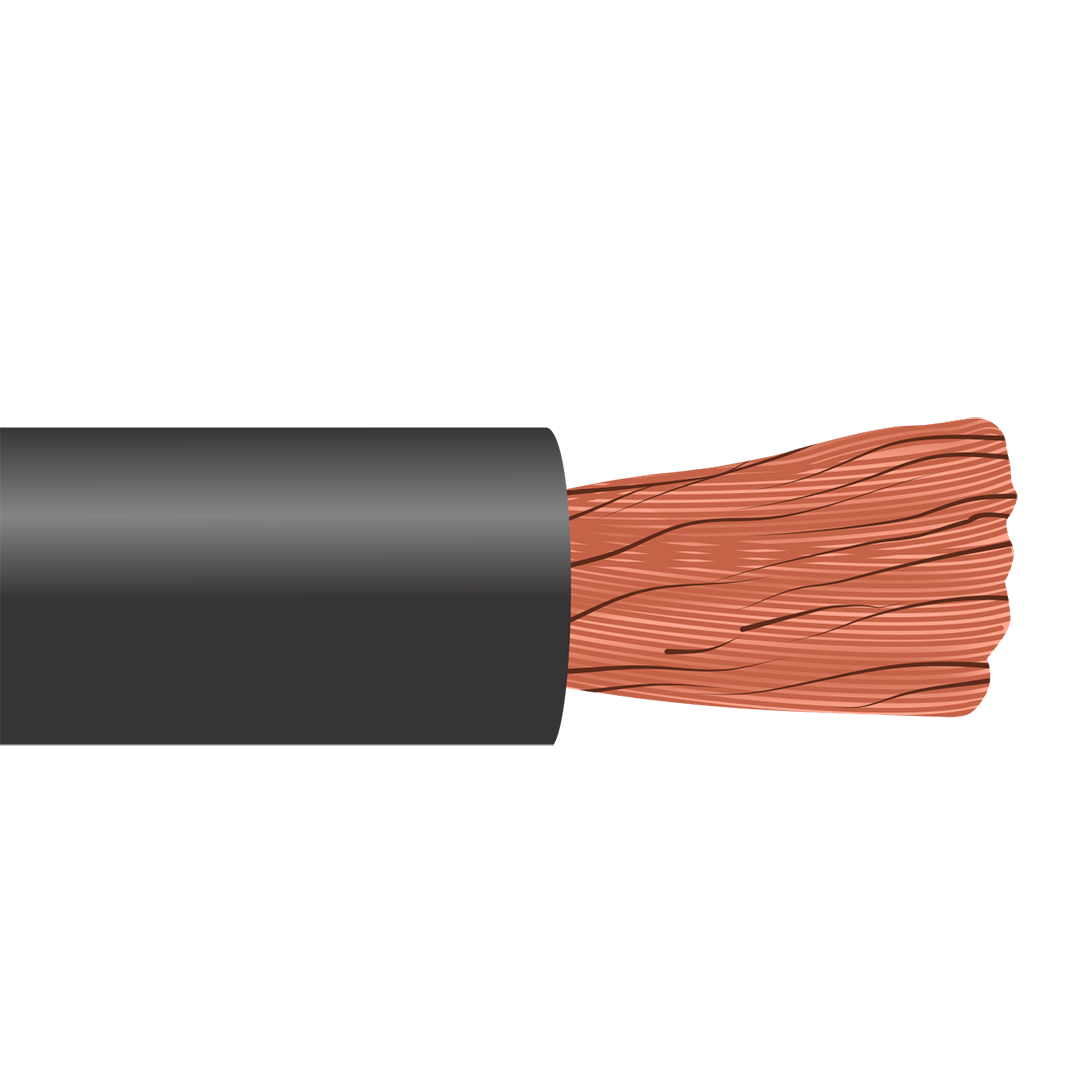

1 AWG Stage Lighting Entertainment Cable

Allowable Ampacity For 1/0 AWG Stage Lighting Entertainment Cable Type SC: 260 Amps

Applications:

Portable power systems. Entertainment industry activities such as theater, television, nightclubs, motion pictures, mobile communication vans, spotlights, and sound systems. Other similar applications would require temporary power. Stage Lighting Entertainment Cable Type SC is a temporary power supply cable used in the entertainment industry, such as television, sound stages, concert venues, and outdoor areas. The electrical cable is also often used in portable lighting systems used on movie production sets, theaters, and stages, and as an Entertainment Industry Stage Lighting Cable (EISL). The electrical cable is rated 600 volts and is used in temperatures between -50°C and -105°C.

Also Known As:

1/0 SC Cable, 1/0 SC Stage Lighting Cable, 1/0 Entertainment Stage Lighting Cable, 1/0 Stage Lighting Entertainment Wire Type SC, 1/0 Stage Lighting Wire, 1/0 SC Feeder Stage Cable, 1/0 Entertainment Industry Cable, 1/0 SC Portable Power Cable, 1/0 SC Portable Power Cord.

Standards:

• UL Subject 1680
• CSA C22.2 No. 96
• NEC Article 520, 525 & 530
• CEC Part I, Table 11
• RoHS
• MSHA

Construction:

Conductor:

Fully annealed stranded bare copper per ASTM B 172

Insulation:

EPDM/CPE insulation resistant to sunlight, water, ozone, abrasion, acids, alkalis, heat, flame, and chemicals.

Specification:

• AWG Size: 1/0
• Number of Conductors: 1
• Stranding: 1064/30
• Insulation Wall, Nom OD Inches: 0.062
• Nominal Diameter (inches): 0.626
• Net Weight (Lbs/1000 FT): 455
