Feelworld FW703 7 Inch IPS Full HD 1920x1200 4K On-Camera Monitor with 3G-SDI/HDMI Input & Output - Professional DSLR Camera Field Monitor for Filmmaking, Vlogging, and Live Streaming

Product Description

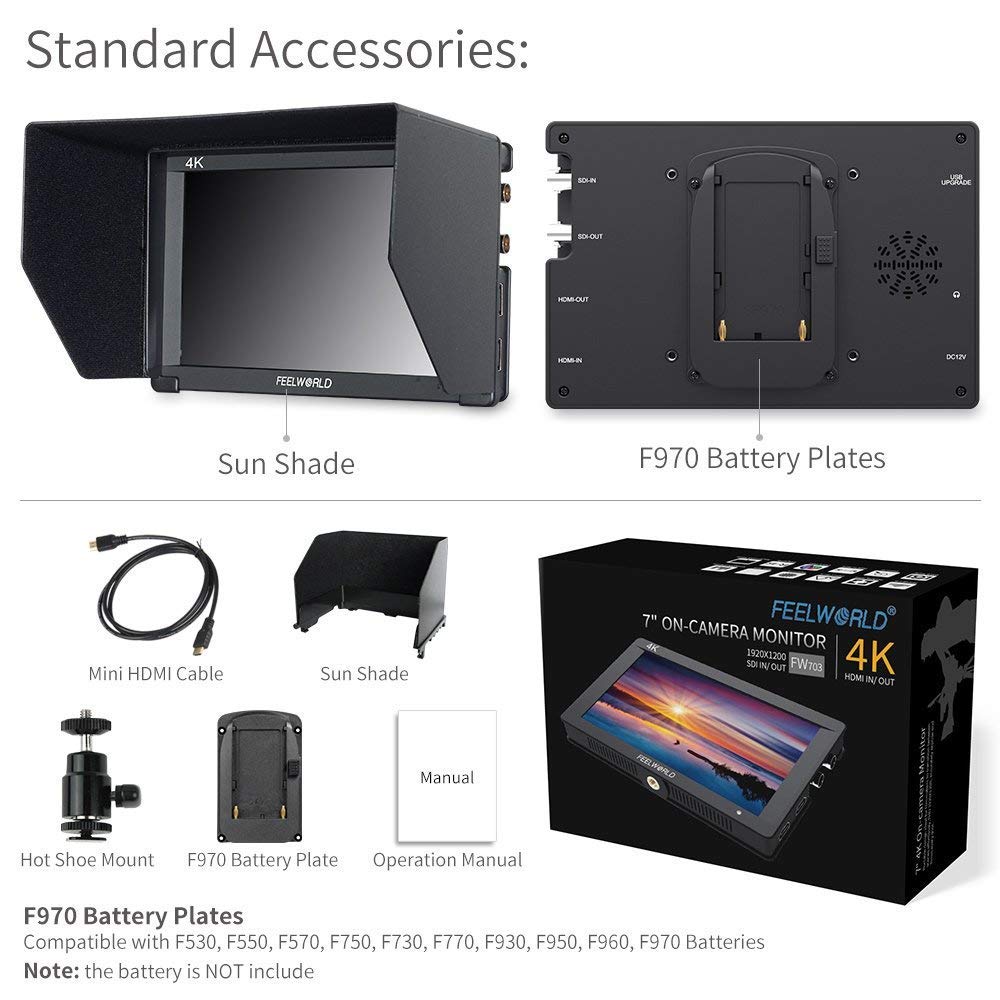

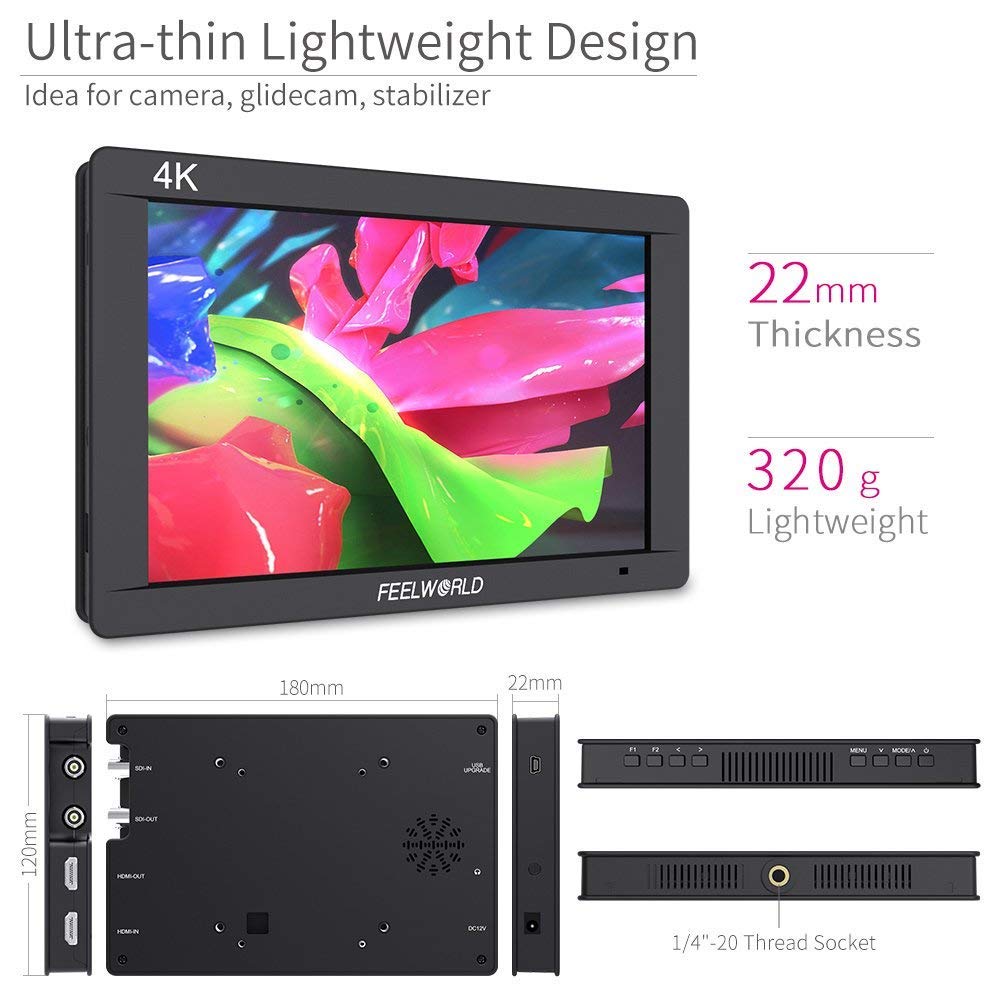

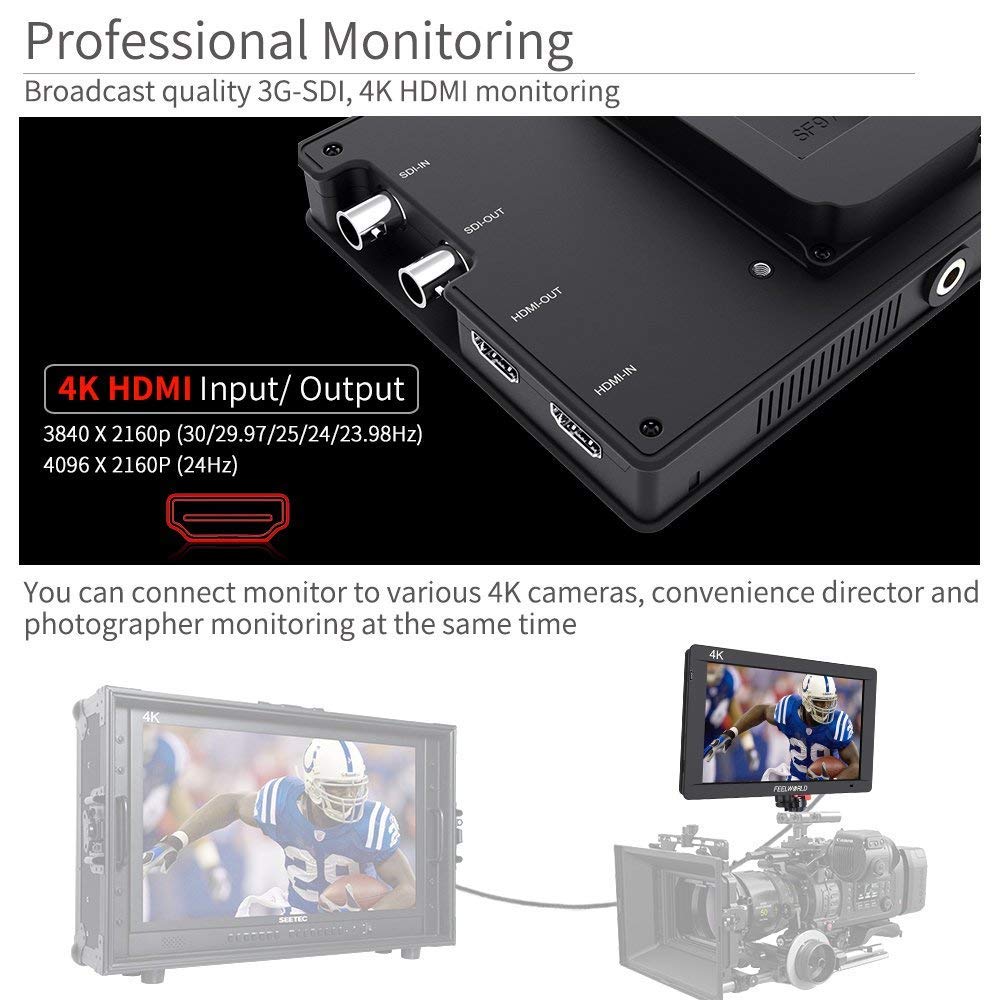

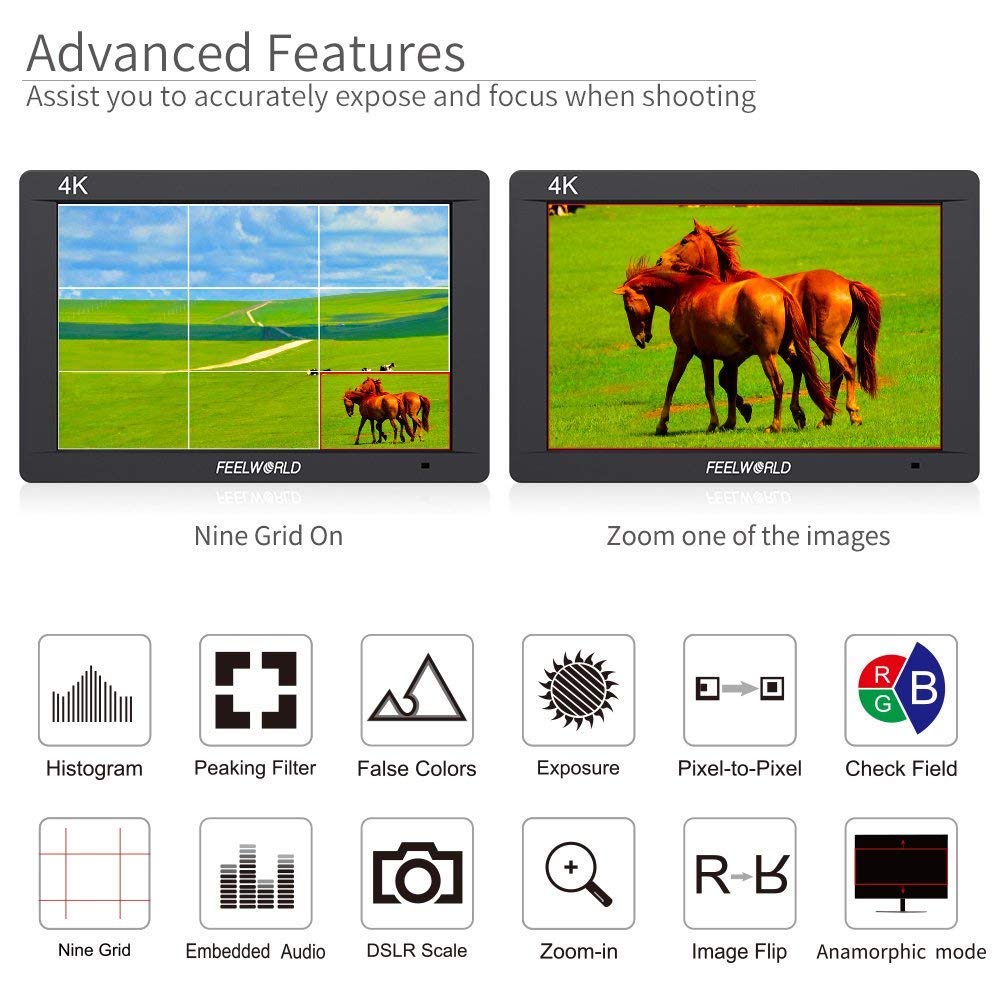

Display Spec. Screen Size: 7" IPSResolution: 1920x1200 pixelsPixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)Aspect Ratio: 16:10Brightness: 450cd/m²Contrast Ratio: 1200:1Backlight: LEDViewing Angle: 80°/80°(L/R) 80°/80°(U/D)Input1 X BNC3G-SDI1 X HDMIHDMIOutput1 X BNC3G-SDI1 X HDMIHDMI AudioAudioStereo Headphone, Speaker SDI Format 480i/576i720p(60/59.94/50/30/29/25/24/23.98)1080i(60/59.94/50)1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) HDMI Input/ Output Format 480i/576i/480p/576p1080i (60/59.94/50)720p (60/59.94/50/30/29/25/24/23.98)1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) General Input Voltage: DC6.5～24VPower Consumption: ≤9WWorking Temperature: -20°C~55°CStorage Temperature: -30°C~65°CInstall Way: 1/4"-20 Thread Socket (bottom)Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)Unit Size: 180Lx120Hx22D (mm)Unit Weight: 320g/350g (With F970 Battery Plate) Advanced Features * Brightness Histogram * Embedded Audio * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) * False Colors * Zebra Exposure (1-100IRE adjustable) * Check Field (Red, Green, Blue, Mono) * Camera Mode * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) * Image Flip (H, V, H/V) * Image Freeze * Center Marker * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) * Color Temperature Adjustment * Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input) * Zoom (4X, 9X, 16X) (Nonsupport in 4K input) * Aspect Ratio (Nonsupport in 4K input) * Pixel to Pixel (Nonsupport in 4K input) * Zoom All (Nonsupport in 4K input) * U/D Zoom (Nonsupport in 4K input) * L/R Zoom (Nonsupport in 4K input)
